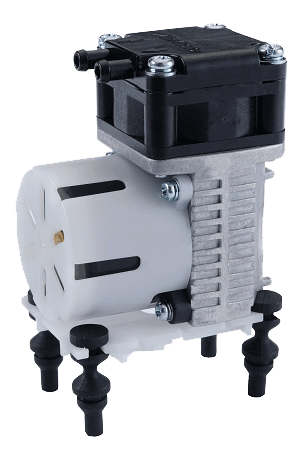

AM5 / AM5H / AM6 /AM6H

Brushless vacuum air pump
Feature:
● Max Pressure:0.50 Kg/cm2 (7.11PSI)
● Max Airflow volume:6.9 Liter per minute (0.24CFM)
● Noise level 45 dBA
● Extremely silent, Energy saving, Oil-free, easy maintenance

Model Voltage Working Pressure Range Maximum
Airflow volume
Maximum
Electric Current
V DC mBar Litre / minute CFM (A)
AM5 12 -300 to 450 6.5 0.23 0.3
AM6 12 -360 to 650 6.9 0.24 0.35
AM5H 24 -300 to 450 6.5 0.23 0.15
AM6H 24 -360 to 650 6.9 0.24 0.19

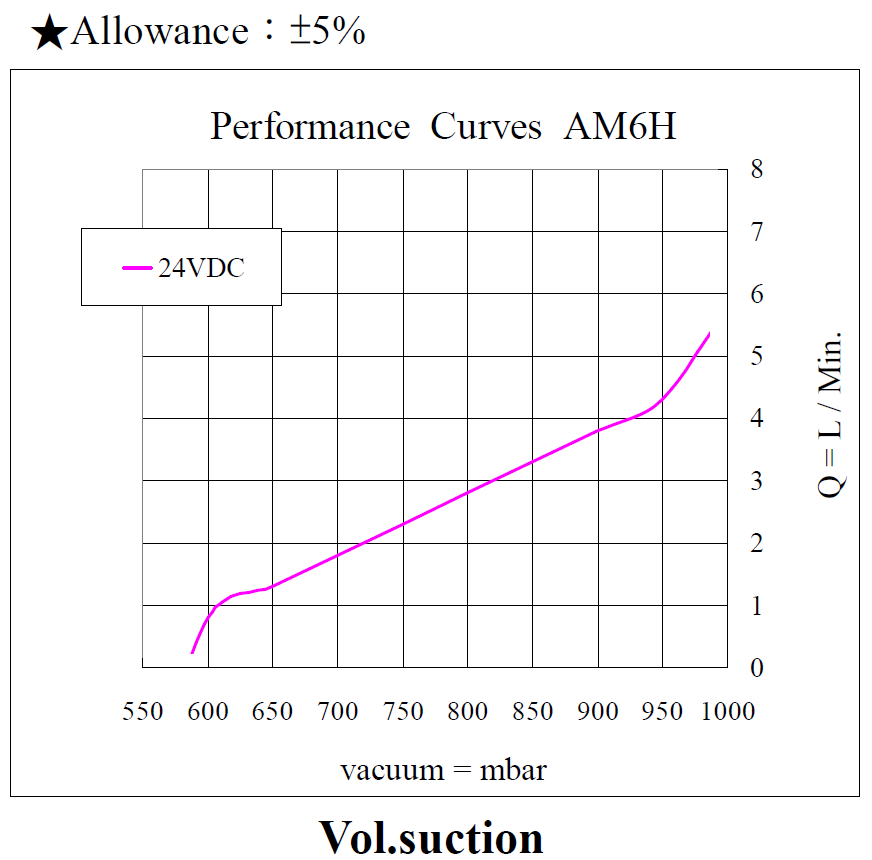

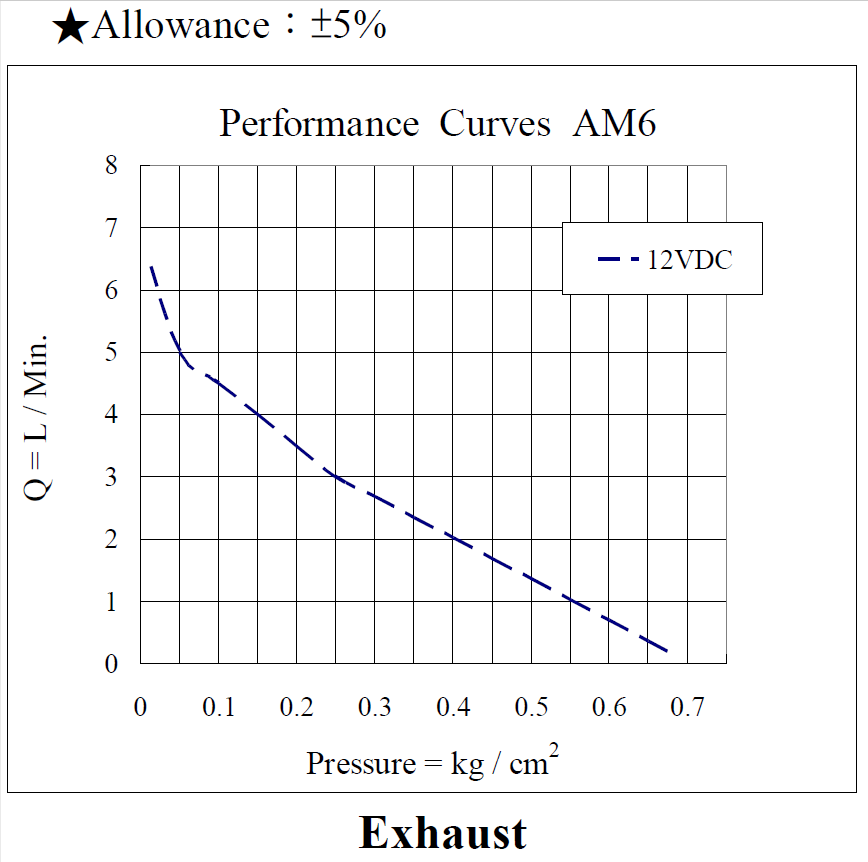

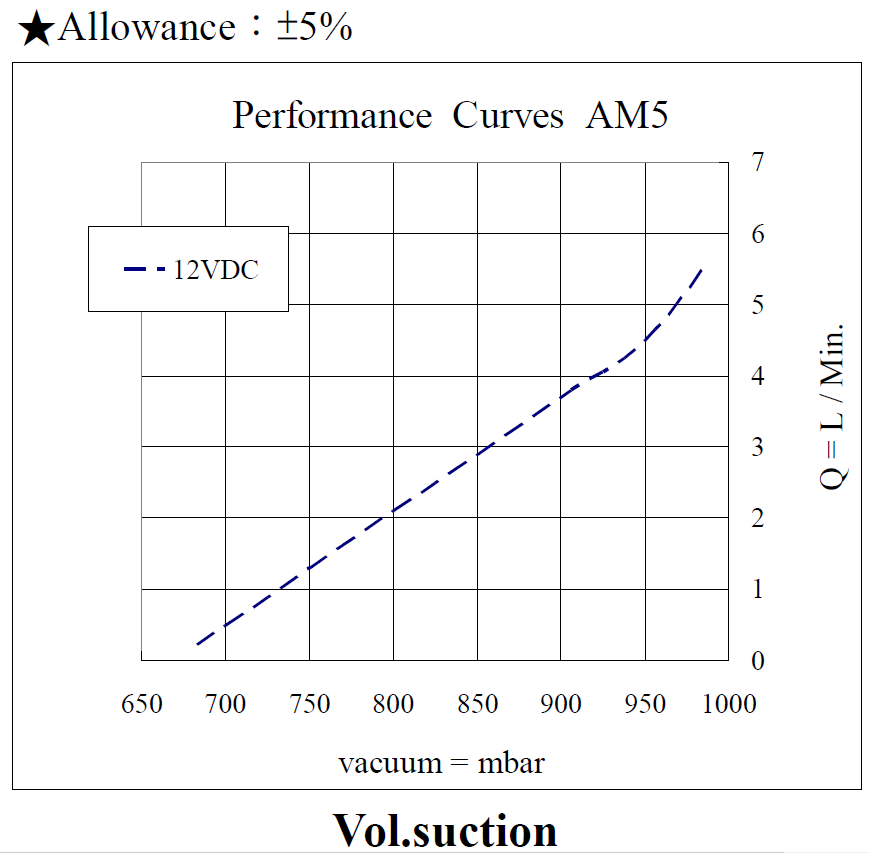

Performance









Dimension (mm)
