Product
DB60
Diaphragm air pump DB60
Feature:
● Max Pressure：0.425 Kg/cm2 (6.04PSI)
● Max Airflow volume：109.9 Liter per minute (3.88CFM)
● Noise level 46 dBA @ 0.15 Kg/cm2
● Extremely silent, Energy saving, Oil-free, easy maintenance.
● Max Pressure：0.425 Kg/cm2 (6.04PSI)
● Max Airflow volume：109.9 Liter per minute (3.88CFM)
● Noise level 46 dBA @ 0.15 Kg/cm2
● Extremely silent, Energy saving, Oil-free, easy maintenance.
Specifications
| Model | Voltage | Frequency |
Rated Pressure |
Airflow volume at rated pressure |
Electric Current |
Power Consumption |
||
|---|---|---|---|---|---|---|---|---|
| VAC | Hz | Kg/Cm2 | PSI | Liter/ Minute | CFM | A | W | |
| DB60 | 110-120 | 60 | 0.15 | 2.13 | 68 | 2.40 | 0.13 | 60 |
| DB60 | 220-240 | 50 | 0.15 | 2.13 | 68 | 2.40 | 0.56 | 60 |
Performance

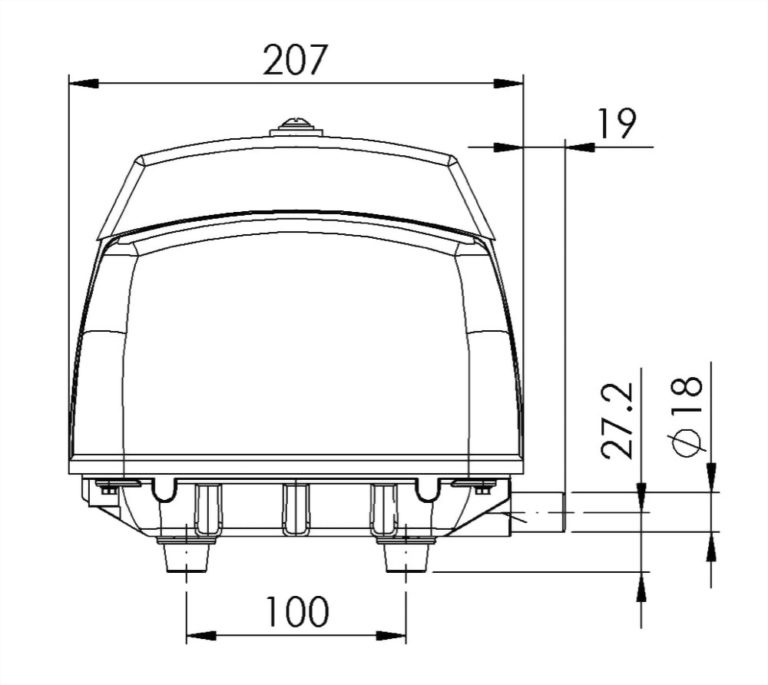

Dimension (mm)
Septic Air pump provide oxygen into residential sewage system for bacteria to break down harmful chemicals in wastewater generated from every toilet. It also offers air into residential sewage system so bacteria can break down chemicals in wastewater generated from every toilet.
