Product
DB8
Small capacity airflow volume / OEM
Features:
● Max Pressure：0.229 Kg/cm2 (3.26PSI)
● Max Airflow volume：21.4 Liter per minute (0.76CFM)
● Noise level 26 dBA @ 0.10 Kg/cm2
● Extremely silent, Energy saving, Oil-free, easy maintenance
● Max Pressure：0.229 Kg/cm2 (3.26PSI)
● Max Airflow volume：21.4 Liter per minute (0.76CFM)
● Noise level 26 dBA @ 0.10 Kg/cm2
● Extremely silent, Energy saving, Oil-free, easy maintenance
Specifications
| Model | Voltage | Frequency |
Rated Pressure |
Airflow volume at rated pressure |
Electric Current |
Power Consumption |
||
|---|---|---|---|---|---|---|---|---|
| VAC | Hz | Kg/Cm2 | PSI | Liter/ Minute | CFM | A | W | |
| DB8 | 110-120 | 60 | 0.10 | 1.42 | 8 | 0.28 | 0.17 | 10 |
| DB8 | 220-240 | 50 | 0.10 | 1.42 | 8 | 0.28 | 0.08 | 10 |
Performance

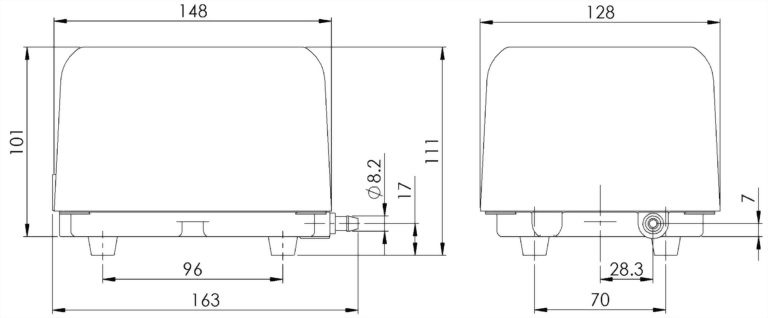

Dimension (mm)
