DB10
Small capacity airflow volume / OEM
Features:
● Max Pressure：0.220 Kg/cm2 (3.12PSI)
● Max Airflow volume：15 Liter per minute (0.53CFM)
● Noise level 40 dBA @ 0.10 Kg/cm2
● Extremely silent, Energy saving, Oil-free, easy maintenance
● Max Pressure：0.220 Kg/cm2 (3.12PSI)
● Max Airflow volume：15 Liter per minute (0.53CFM)
● Noise level 40 dBA @ 0.10 Kg/cm2
● Extremely silent, Energy saving, Oil-free, easy maintenance
Specifications
| Model | Voltage | Frequency |
Rated Pressure |
Airflow volume at rated pressure |
Electric Current |
Power Consumption |
||
|---|---|---|---|---|---|---|---|---|
| VAC | Hz | Kg/Cm2 | PSI | Liter/ Minute | CFM | A | W | |
| DB10 | 110-120 | 60 | 0.10 | 1.42 | 10.5 | 0.37 | 0.10 | 10 |
| DB10 | 220-240 | 50 | 0.10 | 1.42 | 9.5 | 0.34 | 0.05 | 9 |
| DB10 | 24VAC | 60 / 50 | 0.10 | 1.42 | 10 / 8.5 | 0.35 /0.30 | 0.50 / 0.55 | 8.5 / 8 |
| DB10 | 12VAC | 60 / 50 | 0.10 | 1.42 | 10 / 8.5 | 0.35 /0.30 | 1 / 1.10 | 8.5 / 8 |
| DB10 | 12VDC | 60 | 0.10 | 1.42 | 10 | 0.35 | 1.4 | 17 |
Performance

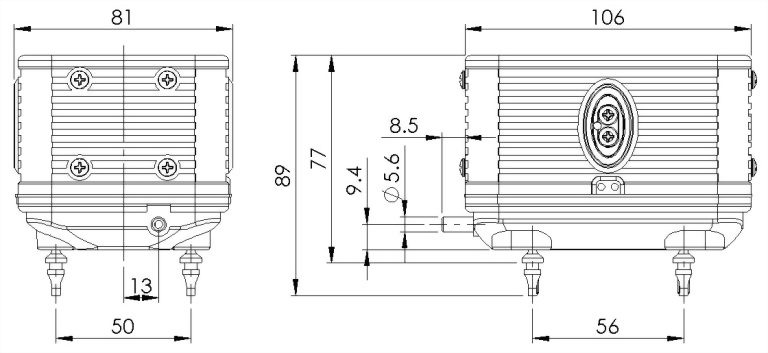

Dimension (mm)
