DM10
Small capacity airflow volume / OEM
Features:
● Max Pressure：0.220 Kg/cm2 (3.12PSI)
● Max Airflow volume：12.70 Liter per minute (0.45CFM)
● Noise level 40 dBA @ 0.10 Kg/cm2
● Extremely silent, Energy saving, Oil-free, easy maintenance
● Max Pressure：0.220 Kg/cm2 (3.12PSI)
● Max Airflow volume：12.70 Liter per minute (0.45CFM)
● Noise level 40 dBA @ 0.10 Kg/cm2
● Extremely silent, Energy saving, Oil-free, easy maintenance
Specifications
| Model | Voltage | Frequency |
Rated Pressure |
Airflow volume at rated pressure |
Electric Current |
Power Consumption |
||
|---|---|---|---|---|---|---|---|---|
| VAC | Hz | Kg/Cm2 | PSI | Liter/ Minute | CFM | A | W | |
| DM10 | 110-120 | 60 | 0.10 | 1.42 | 10 | 0.35 | 0.09 | 8 |
| DB10 | 220-240 | 50 | 0.10 | 1.42 | 8 | 0.28 | 0.05 | 8 |
| DB10 | 24VAC | 60 / 50 | 0.10 | 1.42 | 10.5 / 9 | 0.37 /0.28 | 0.51 | 9 / 8 |
| DB10 | 12VAC | 60 / 50 | 0.10 | 1.42 | 10.5 / 9.5 | 0.37 /0.34 | 1 | 9 / 8 |
| DB10 | 12VDC | 60 | 0.10 | 1.42 | 10 | 0.35 | 1.2 | 15 |

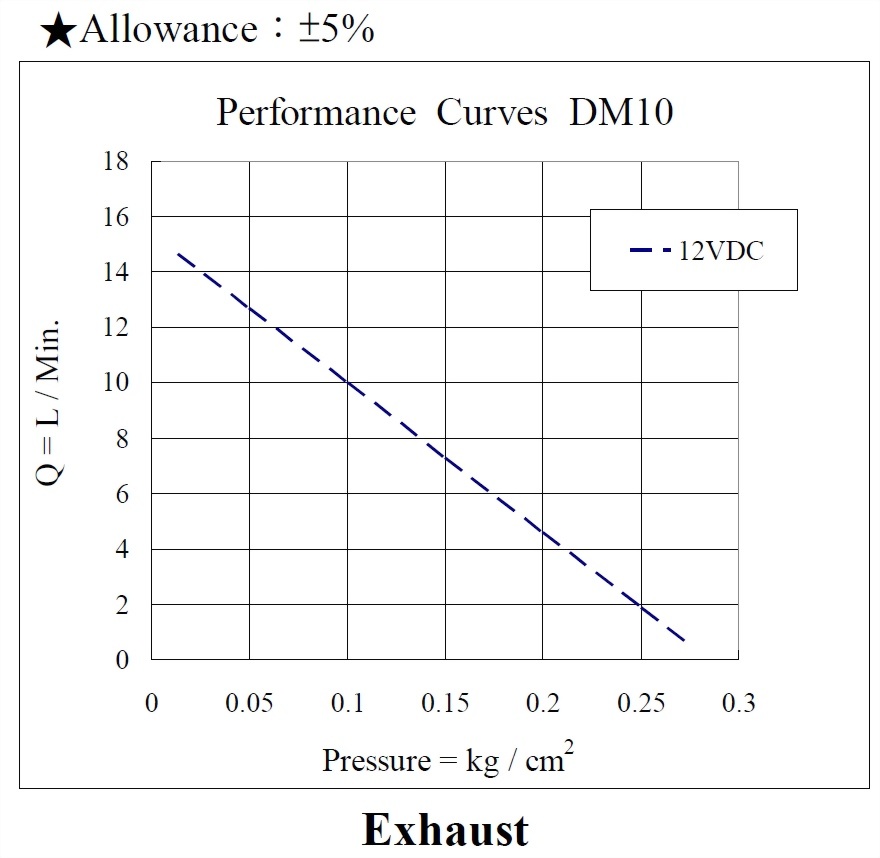

Performance
Dimension (mm)
