• DB10S

DB10S

Vacuum Linear Air Pump
Feature:
● Max Pressure:0.251 Kg/cm2 (3.57PSI)
● Max Airflow volume:12 Liter per minute (0.42CFM)
● Noise level 38 dBA
● Extremely silent , Energy saving, Oil-free, easy maintenance


Specifications



Model Voltage Frequency

Rated

 Pressure

Airflow volume

at rated pressure

Electric

Current

Power

Consumption

Max

Vacuum

VAC Hz Kg/Cm2 PSI Liter/ Minute CFM A W mBar
DB10S 110-120 60 0.10 1.42 9 0.32 0.10 9 220
DB10S 220-240 50 0.10 1.42 7.5 0.26 0.05 9 210
DB10S 24VAC 60 / 50 0.10 1.42 8.5 / 7.5 0.30 / 0.26 0.5 / 0.6 8.5 220 / 210
DB10S 12VAC 60 / 50 0.10 1.42 9.5 / 7.5 0.34 / 0.26 1 / 1.2 8.5 / 8 240 / 220

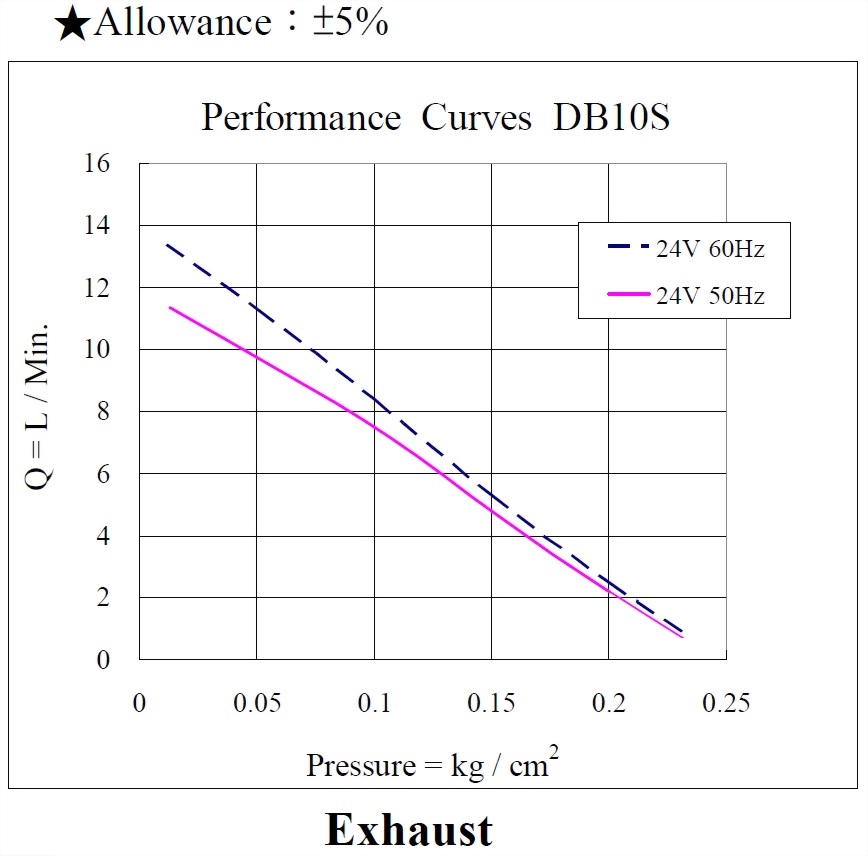

Performance








Dimension (mm)




Air pump with Linear diaphragm technology is low pressure high flow air pump could be used for many industries or applications. Applicable fields include medical, scientific equipment and technology industries.
