Product
DM10S
Vacuum Linear Air Pump
Feature:
● Max Pressure：0.235 Kg/cm2 (3.34PSI)
● Max Airflow volume：12.5 Liter per minute (0.44CFM)
● Noise level 35 dBA
● Extremely silent, Energy saving, Oil-free, easy maintenance
● Max Pressure：0.235 Kg/cm2 (3.34PSI)
● Max Airflow volume：12.5 Liter per minute (0.44CFM)
● Noise level 35 dBA
● Extremely silent, Energy saving, Oil-free, easy maintenance
Specifications
| Model | Voltage | Frequency |
Rated Pressure |
Airflow volume at rated pressure |
Electric Current |
Power Consumption |
Max Vacuum |
||
|---|---|---|---|---|---|---|---|---|---|
| VAC | Hz | Kg/Cm2 | PSI | Liter/ Minute | CFM | A | W | mBar | |
| DM10S | 110-120 | 60 | 0.10 | 1.42 | 10.5 | 0.37 | 0.10 | 10 | 245 |
| DM10S | 220-240 | 50 | 0.10 | 1.42 | 9 | 0.32 | 0.05 | 9 | 210 |
| DM10S | 24VAC | 60 / 50 | 0.10 | 1.42 | 9.5 / 8.3 | 0.34 / 0.29 | 0.50 | 8 / 7.5 | 235 / 190 |
| DM10S | 12VAC | 60 / 50 | 0.10 | 1.42 | 10.5 / 9.5 | 0.37 / 0.34 | 1 | 9 / 8 | 235 / 180 |
| DM10S | 12VDC |
|
0.10 | 1.42 | 10 | 0.35 | 1.20 | 15 | 250 |

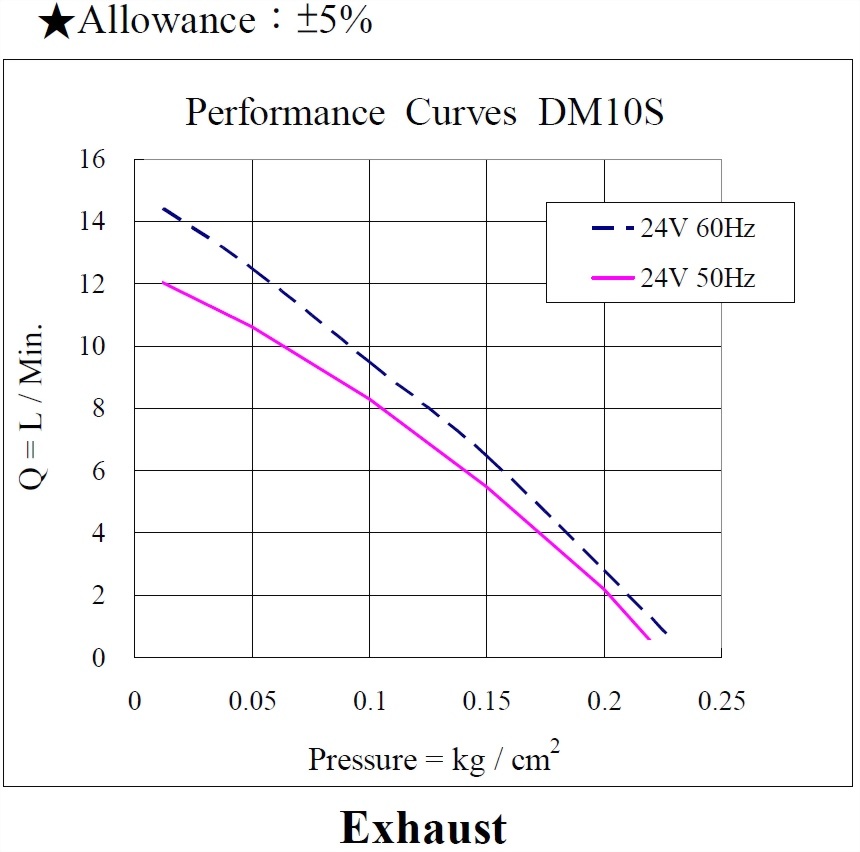

Performance
Dimension (mm)
