• DB8S

DB8S

Vacuum Linear Air Pump
Feature:
● Max Pressure:0.219 Kg/cm2 (3.11PSI)
● Max Airflow volume:18.70 Liter per minute (0.66CFM)
● Noise level 21 dBA
● Extremely silent, Energy saving, Oil-free, easy maintenance


Specifications



Model Voltage Frequency

Rated

 Pressure

Airflow volume

at rated pressure

Electric

Current

Power

Consumption

Max

Vacuum

VAC Hz Kg/Cm2 PSI Liter/ Minute CFM A W mBar
DB8S 110-120 60 0.10 1.42 8 0.28 0.17 10 230
DB8S 220-240 50 0.10 1.42 8 0.28 0.08 10 190
DB8S 24VAC 50 0.10 1.42 8 0.28 0.75 8 190

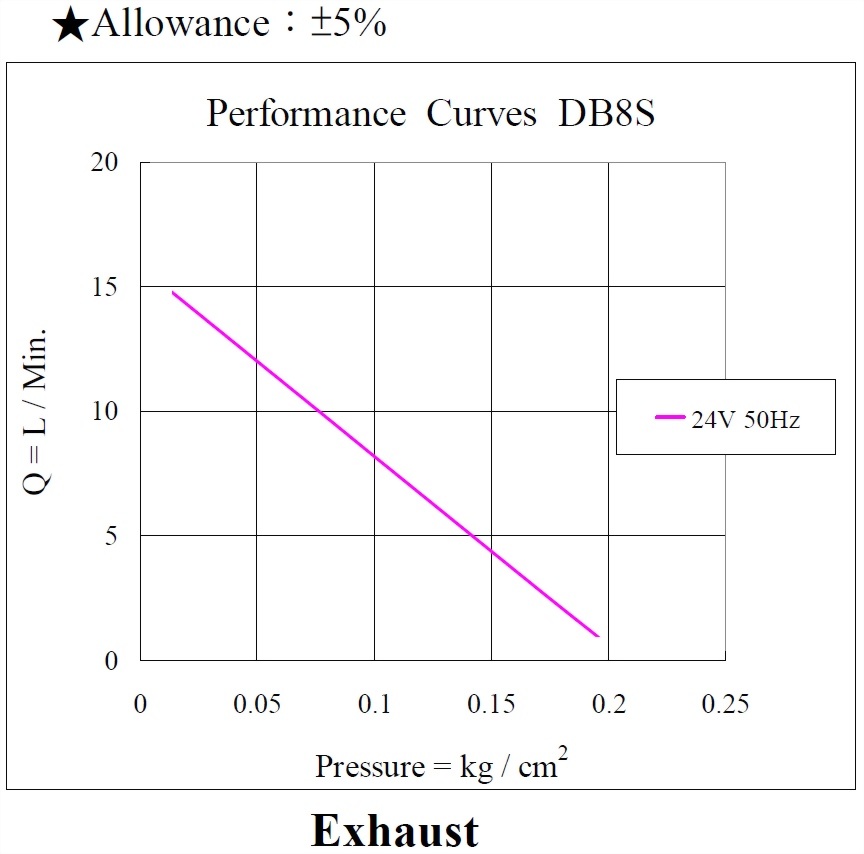

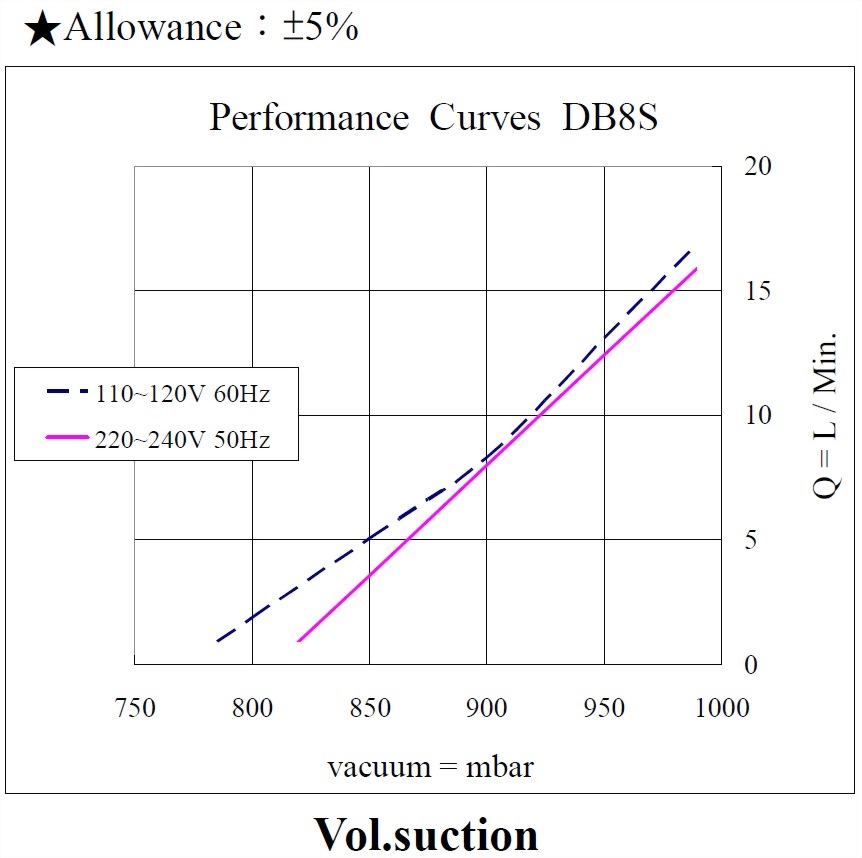

Performance

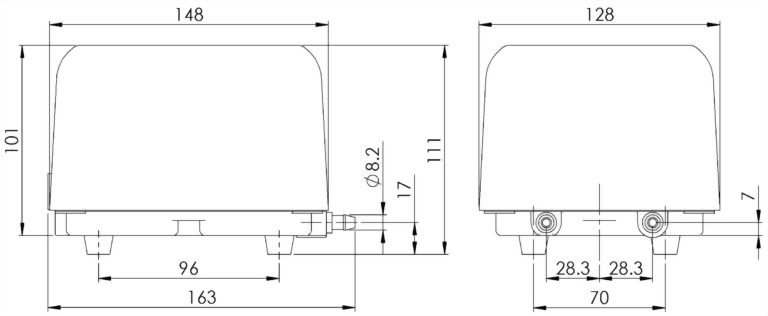

Dimension (mm)
