Product
DBM25B
Vacuum Linear Air Pump
Feature:
● Max Pressure：0.218 Kg/cm2 (3.10PSI)
● Max Airflow volume：50.4 Liter per minute (1.78CFM)
● Noise level 48 dBA
● Extremely silent, Energy saving, Oil-free, easy maintenance
● Max Pressure：0.218 Kg/cm2 (3.10PSI)
● Max Airflow volume：50.4 Liter per minute (1.78CFM)
● Noise level 48 dBA
● Extremely silent, Energy saving, Oil-free, easy maintenance
Specifications
| Model | Voltage | Frequency |
Rated Pressure |
Airflow volume at rated pressure |
Electric Current |
Power Consumption |
Max Vacuum |
||
|---|---|---|---|---|---|---|---|---|---|
| VAC | Hz | Kg/Cm2 | PSI | Liter/ Minute | CFM | A | W | mBar | |
| DBM25B | 110-120 | 60 | 0.13 | 1.85 | 25 | 0.88 | 0.20 | 17 | 250 |
| DBM25B | 220-240 | 50 | 0.13 | 1.85 | 22 | 0.78 | 0.06 | 11 | 240 |

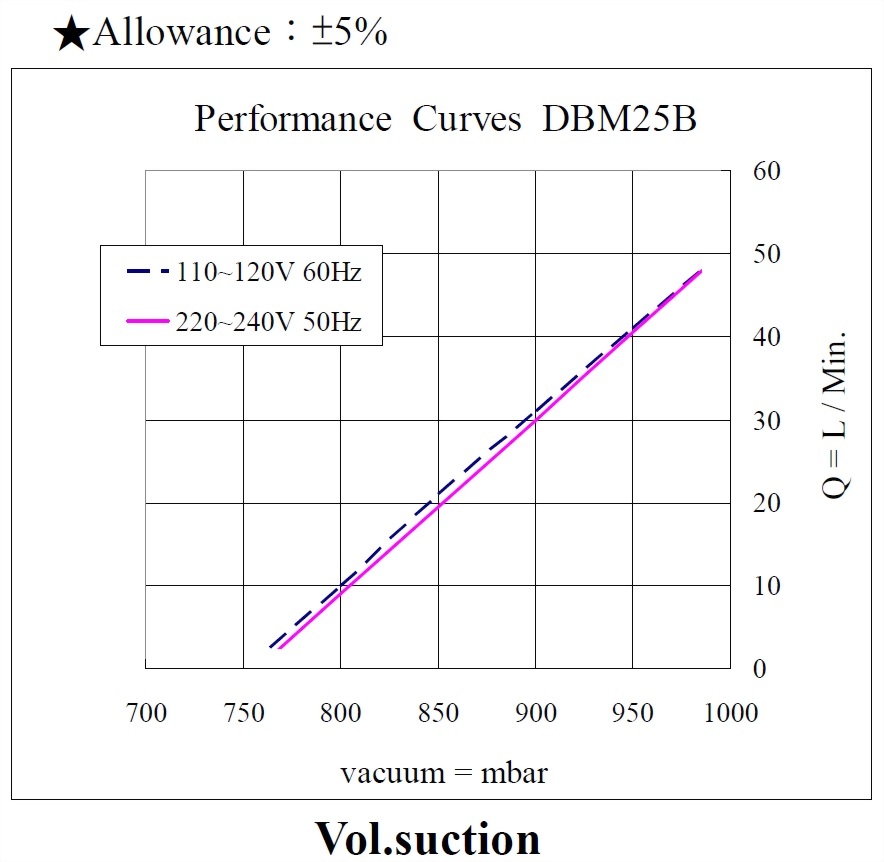

Performance
Dimension (mm)
