• DB5S

DB5S

Vacuum Linear Air Pump
Feature:
● Max Pressure:0.206 Kg/cm2 (2.93PSI)
● Max Airflow volume:10.6 Liter per minute (0.37CFM)
● Noise level 34 dBA
● Extremely silent, Energy saving, Oil-free, easy maintenance


Specifications



Model Voltage Frequency

Rated

 Pressure

Airflow volume

at rated pressure

Electric

Current

Power

Consumption

Max

Vacuum

VAC Hz Kg/Cm2 PSI Liter/ Minute CFM A W mBar
DB5S 110-120 60 0.04 0.57 9 0.32 0.12 8.7 206
DB5S 220-240 50 0.04 0.57 8 0.28 0.06 9 167
DB5S 24VAC 60 / 50 0.04 0.57 10 / 8 0.35 / 0.28 0.6 8.5 206 / 176
DB5S 12VAC 60 / 50 0.04 0.57 10 / 9 0.35 / 0.32 1.05 / 1.15 8 206 / 176
DB5S 24 / 12VDC 0.04 0.57 8 0.28 0.4 9.6 180

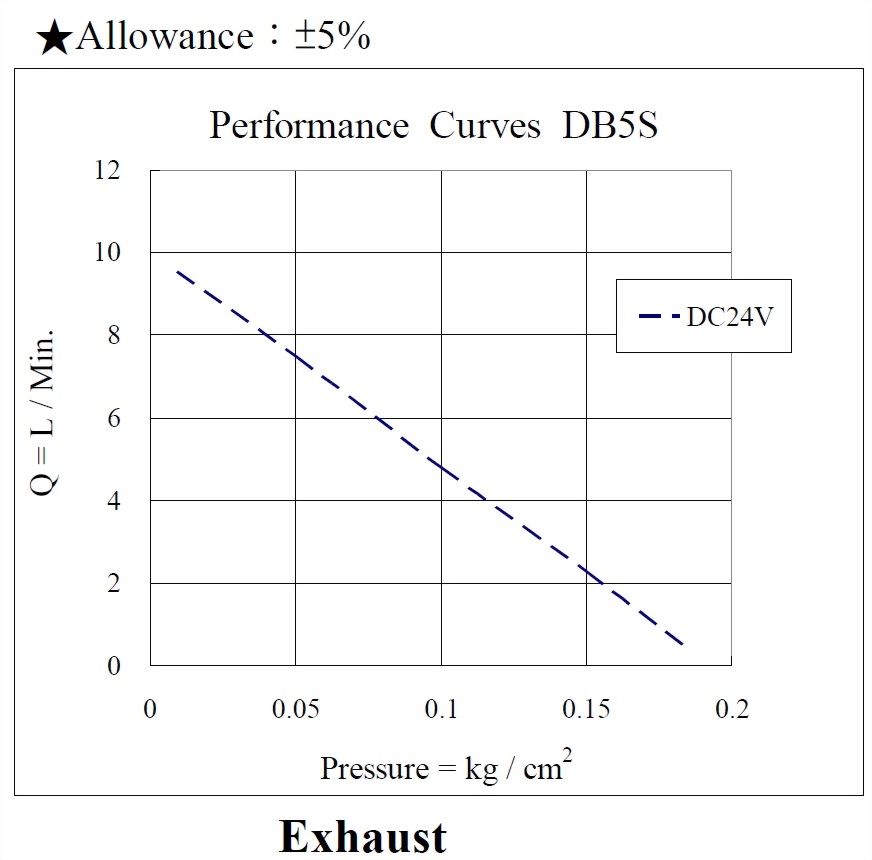

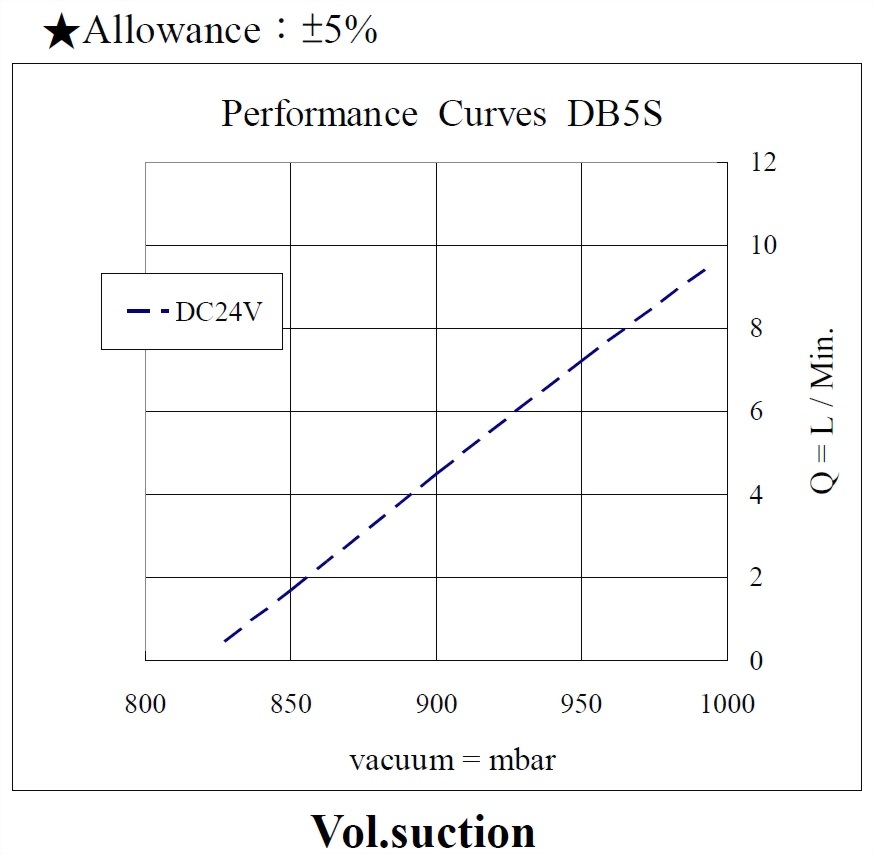

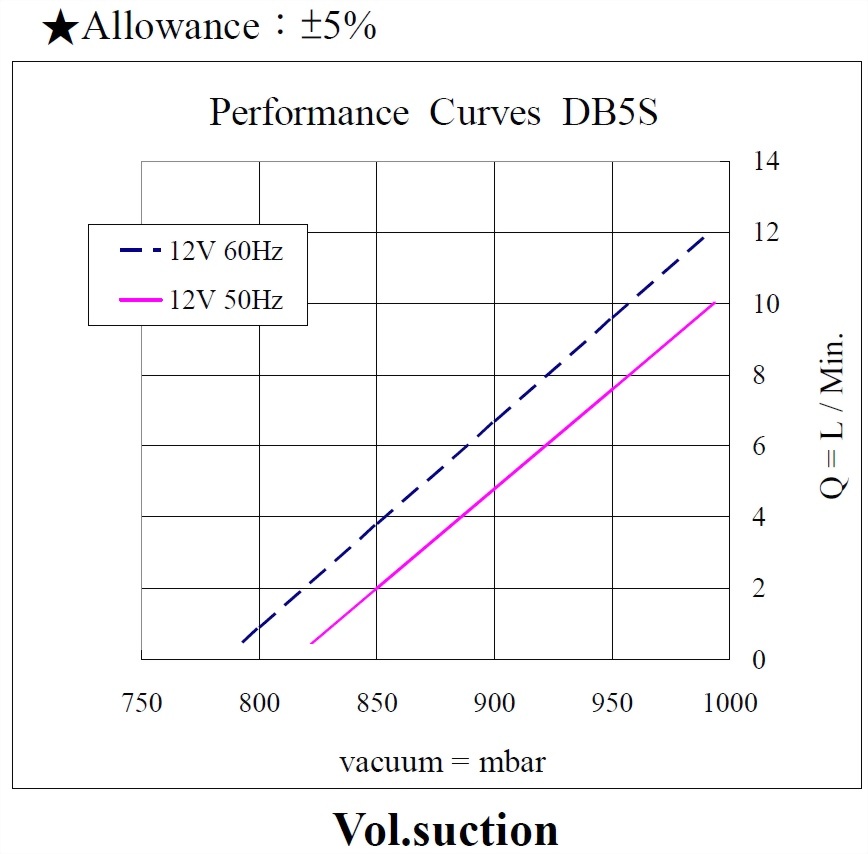

Performance

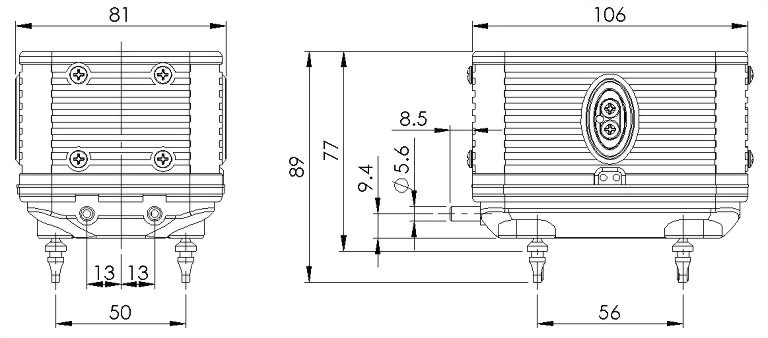

Dimension (mm)
