• DBM20

DBM20

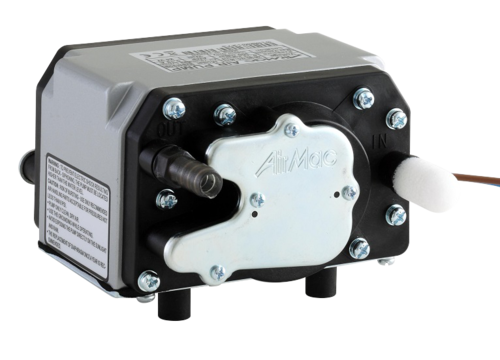

Vacuum Linear Air Pump
Feature:
● Max Pressure:0.347 Kg/cm2 (4.94PSI)
● Max Airflow volume:23.75 Liter per minute (0.84CFM)
● Noise level 37 dBA
● Extremely silent, Energy saving, Oil-free, easy maintenance


Specifications



Model Voltage Frequency

Rated

 Pressure

Airflow volume

at rated pressure

Electric

Current

Power

Consumption

Max

Vacuum

VAC Hz Kg/Cm2 PSI Liter/ Minute CFM A W mBar
DBM20 110-120 60 0.10 1.42 20 0.71 0.17 15 310
DBM20 220-240 50 0.10 1.42 20 0.71 0.12 17 350
DBM20 24VAC 50 0.10 1.42 20 0.71 1.2 15 340
DBM20 12VDC 0.10 1.42 20 0.71 1.5 18 340


Performance








Dimension (mm)
