• DBM30B

DBM30B

Vacuum Linear Air Pump
Feature:
● Max Pressure:0.341 Kg/cm2 (4.85PSI)
● Max Airflow volume:58.1 Liter per minute (2.05CFM)
● Noise level 48 dBA
● Extremely silent, Energy saving, Oil-free, easy maintenance

Model Voltage Frequency Rated Pressure Airflow volume at rated pressure Electric Current Power Consumption Max. Vacuum
VAC Hz Kg/Cm^2 PSI Litre / Minute CFM A W mBar
DBM30B 110-120 60 0.13 1.85 30 1.06 0.30 28 300
DBM30B 220-240 50 0.13 1.85 30 1.06 0.13 24 300
DBM30B 24VAC 60 / 50 0.13 1.85 30 1.06 1.5 / 1.3 28 / 23 300
DBM30B 12VAC 50 0.13 1.85 30 1.06 2.2 20 270
DBM30B 24 / 12VDC 0.13 1.85 30 1.06 1.2 / 2.6 27 / 31 300

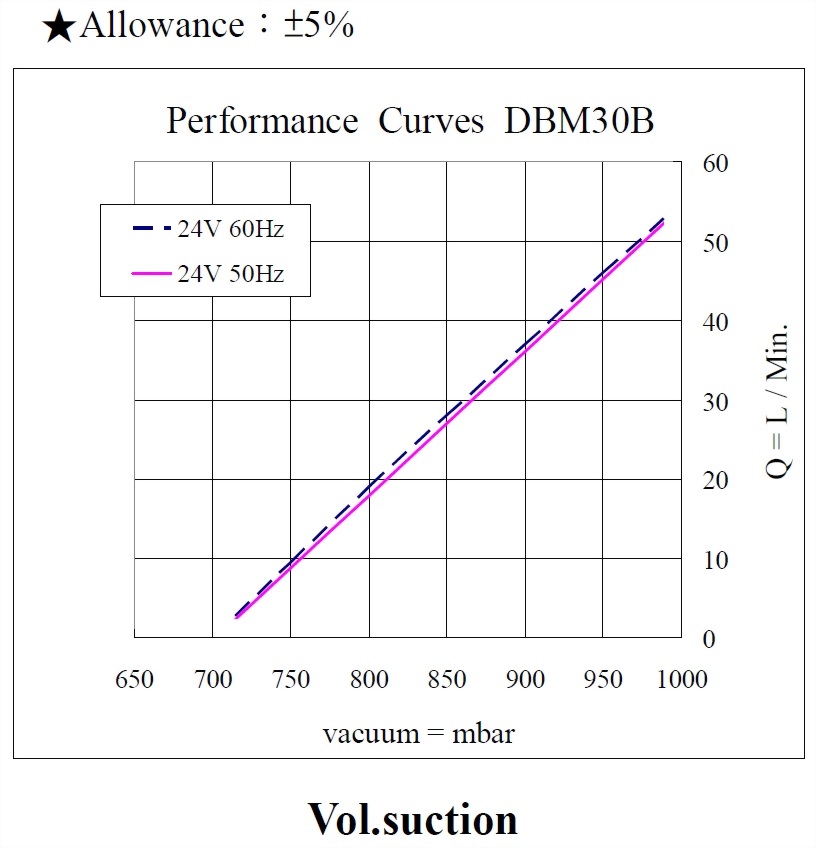

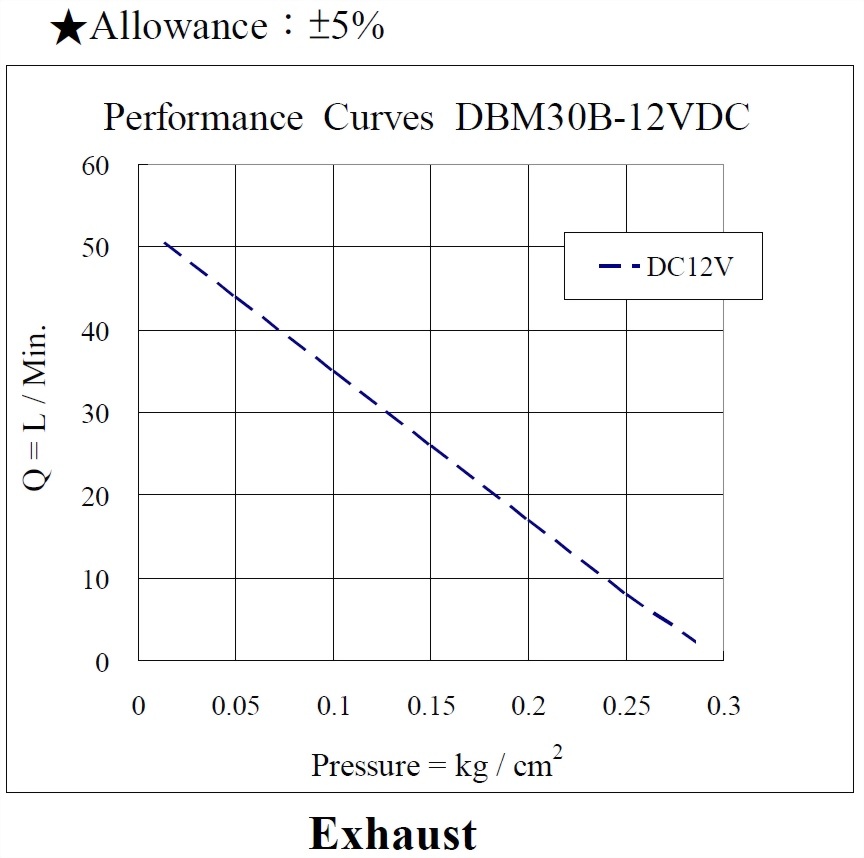

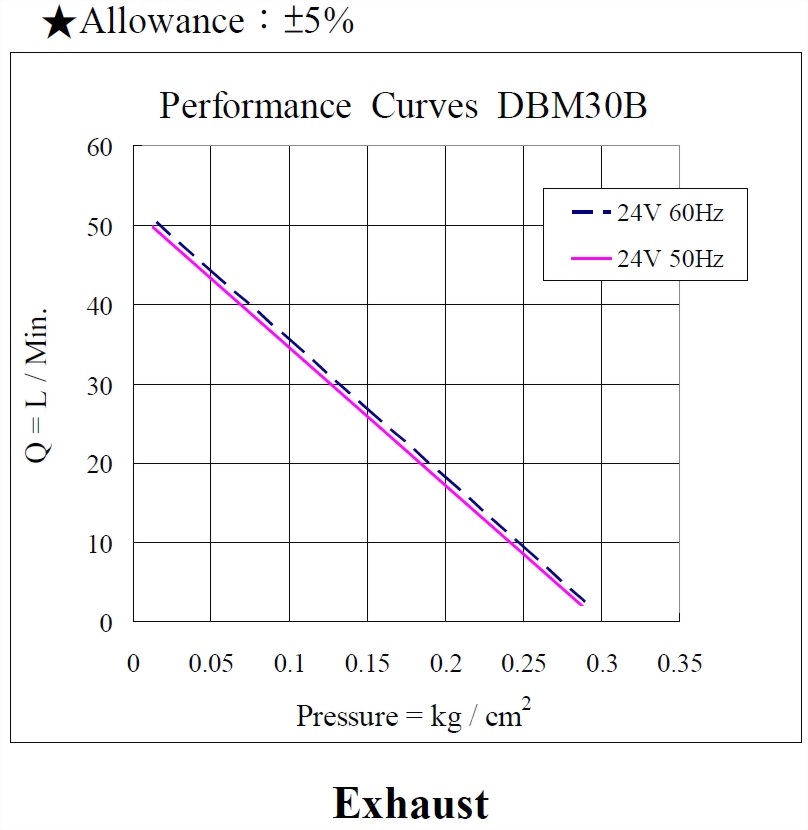

Performance











Dimension (mm)
