• DBM40B

DBM40B

Vacuum Linear Air Pump
Feature:
● Max Pressure:0.345 Kg/cm2 (4.91PSI)
● Max Airflow volume:56 Liter per minute (1.98CFM)
● Noise level 48 dBA
● Extremely silent, Energy saving, Oil-free, easy maintenance


Specifications



Model Voltage Frequency

Rated

 Pressure

Airflow volume

at rated pressure

Electric

Current

Power

Consumption

Max

Vacuum

VAC Hz Kg/Cm2 PSI Liter/ Minute CFM A W mBar
DBM40B 110-120 60 0.13 1.85 40 1.41 0.41 35 310
DBM40B 220-240 50 0.13 1.85 40 1.41 0.20 32 310
DBM40B 24VAC 50 0.13 1.85 40 1.41 2.1 32.5 310
DBM40B 12VAC 50 0.13 1.85 40 1.41 3.5 29 310

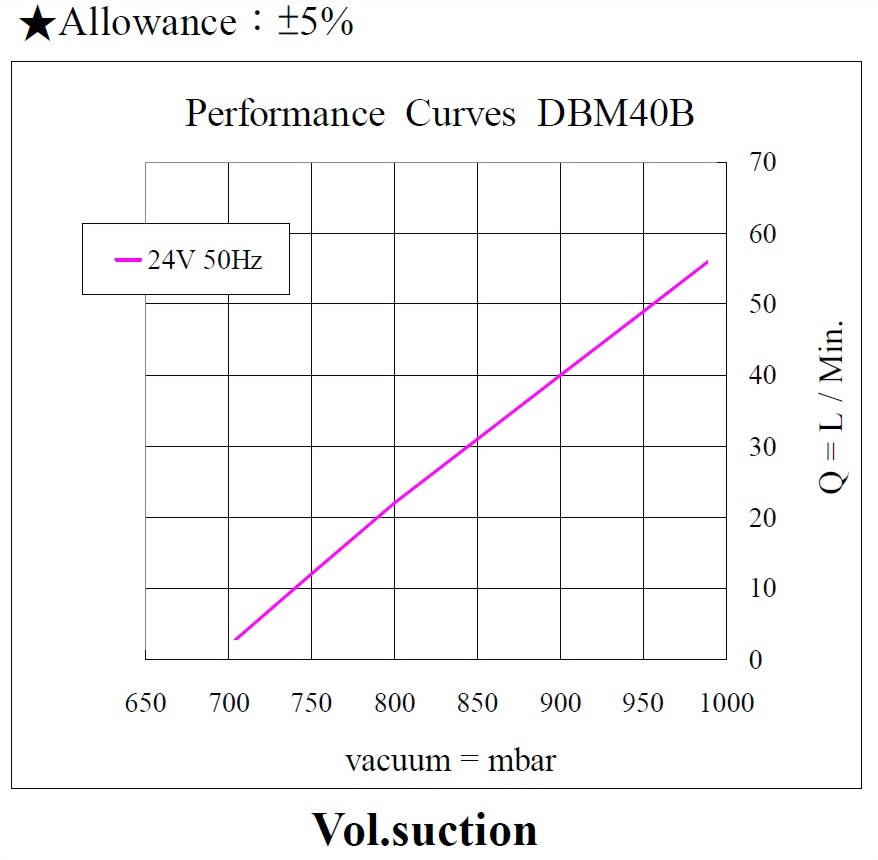

Performance

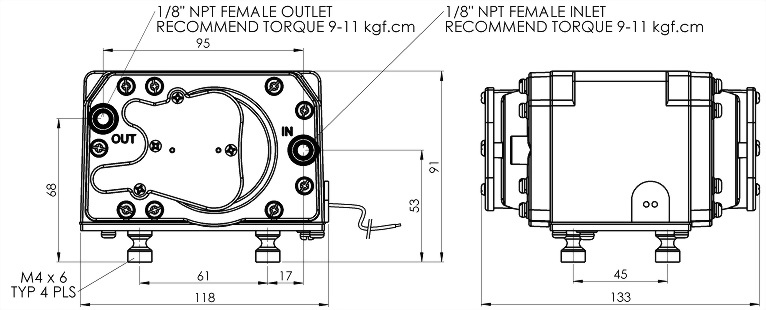

Dimension (mm)




DBM40B is compact and small could be used for Gas analysis system, Ozone generate machine, Particle counting machine, Laboratory air pump.
